Test Report
Fire Resistance
Slip Resistance
Nano Silver (Anti-Bacteria)

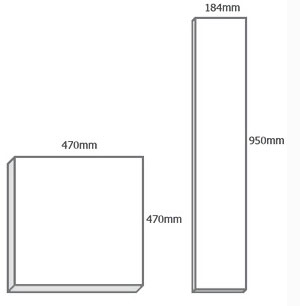

Dimensions

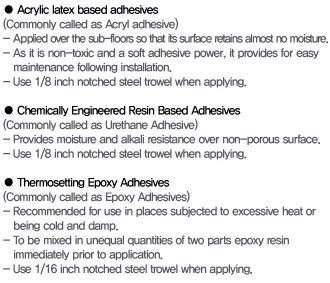

Adhesive
| Width x Length | Content Per Carton | |||
|---|---|---|---|---|
| mm | inch(") | PCS | sqm | sqft |
| 470 x 470 | 18.5 x 18.5 | 15 | 3.31 | 35.6 |
| 184 × 950 | 7.2 × 37.4 | 19 | 3.32 | 35.7 |
| 176 × 940 | 6.9 × 37.0 | 9 | 1.47 | 16.8 |
| 169 × 1210 | 6.6 × 47.6 | 10 | 2.04 | 21.9 |
| MATERIAL | RATING | MATERIAL | RATING |
|---|---|---|---|
| 95% Ethyl Alcohol | 0 | Nitric Acid 70% | 1 |
| Cement Paste | 0 | Sulfuric Acid 96% | 1 |
| 10% Ammonium Hydroxide | 0 | Methylene Chloride | 2 |
| Milk | 0 | Soy Sauce | 0 |
| 5% Acetic Acid | 0 | Soy Bean Oil | 0 |
| 5% Hydrochloric Acid | 0 | Lubricant | 0 |
| Kerosene | 0 | Coffee | 0 |
| Sesame Oil | 0 | Tea | 0 |
| Acetone | 2 | Ketchup | 0 |
| Nail Polish Remover | 2 |
| Type & Composition | PVC Laminated Floor covering | |
|---|---|---|
| Application | Commercial, Residential | |
| Surface treatment | PU & Anti-bacterial, per design | |
| Profile | Beveled / Non-beveled, per design | |
| Tile Size (mm) | EN 427 | 470×470, 184×950, 176×940, 169×1210 |
| Total thickness (mm) | EN 428 | 3.0 |
| Wear layer thickness (mm) | EN 429 | 0.3 0.5 0.7 1.0 |
| Classification | EN 685 | 21 23/31 33/42 34/43 |
| Fire rating | EN 13501-1 | Bn-S1 |
| ASTM E 684 | Class 1 | |
| ASTM E 84 | 75 or Less | |
| Mekel Burner Test | Pass | |
| Heat Stability | KSM 3802 | 0.3mm / 0.01”(80℃+2℃, 6hr / hr) |
| Abrasion resistance | ASTM D 3884 | 0.1% Loss |
| Slip resistance | ADA | Exceeds ADA requirement |
| Static Coefficient of Friction | ASTM C 1028 | Dry : 0.72 (≥0.50) |
| Wet : 0.67(≥0.50) | ||
| Residual indentation | EN 433 | ≥6 |
| Color fastness | ISO 105-B02 | ≥6 |
| Dimensional stability | EN 434 | |
| Flexibility | EN 435 | |
| Electric behavior | EN 1081 |
